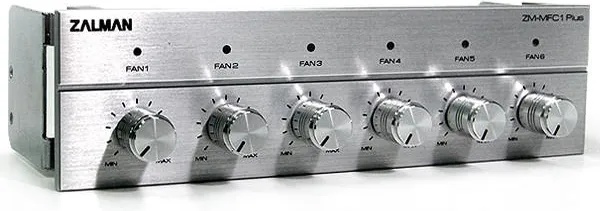

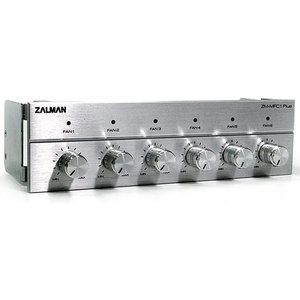

1. 6-Channel Fan controller for 5.25"Bay
2. Universal DC fan controller
1) 4 Channels : Speed adjustment of 3-pin connector type DC fan(7W or less) with the Fan speed
control knob.
2) 2 Channels : Two-level (+5V, +12V) adjustment of 2-pin connector type DC fan or other electronic
device with the toggle switch.
3. Easy fan speed check with color/intensity-changing LED-lights
4. 3-pin extension cable for convenient installation - for use when the fan's wire length is too short
to reach the controller

Electrical Specifications

1. 4 Channel - Adjustable Fan Speed Dials
- Maximum Power : 7.0W per channel
- Maximum Adjustable Range: +6.5Vmax (=Vfan(max) - Vfan(min))
- Maximum Voltage Drop : +2.0Vmax (= Vpin(max) - Vfan(max))
- Extension cable length (4pcs): 400mm

2. 2 Channel - Toggle Switches
- Maximum Power : Unlimited, as allowable by power supply capacity.
- Adjustable Range : Maximum voltage output or minimum voltage output

Продукт известен още и като ZM MFC 1 Plus, ZMMFC1Plus, ZM MFC1 Plus, ZM-MFC1Plus
